UM60-225

Deflecting mirror

Part no.: 529602

Series UM
Type, columns and mirrors Deflecting mirror
Dimension (W x H x L) 25 mm x 68 mm x 295 mm
Net weight 700 g
Housing color Yellow, RAL 1021

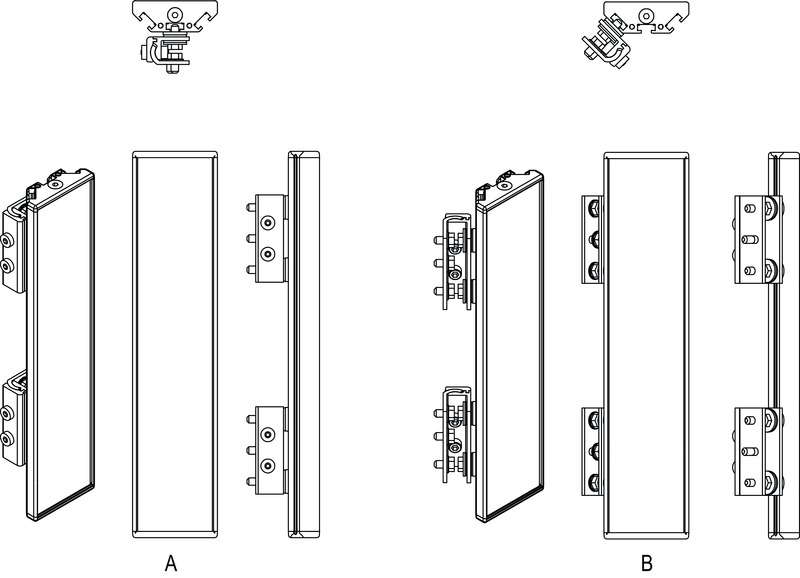

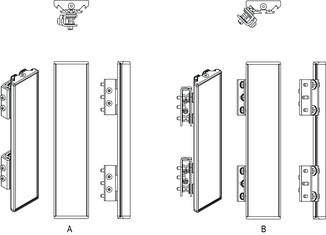

Type of fastening Swivel mount, Groove mounting
Suitable for sensor MLC 500, MLC 300 safety light curtains
Protected field height up to 225 mm
Mirror length 285 mm
Customs tariff number 70099200
ECLASS 5.1.4 27279207
ECLASS 8.0 27279207
ECLASS 9.0 27273605
ECLASS 10.0 27273605
ECLASS 11.0 27273605
ECLASS 12.0 27273605
ETIM 5.0 EC002467
ETIM 6.0 EC002467
ETIM 7.0 EC002467

Filter

Results list: 2 products found
BT-2S
Mounting bracket set
Part no.: 560120
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
  • Suitable for product group: Measuring light curtains, Protective sensors, Safe...
Part no.: 560120

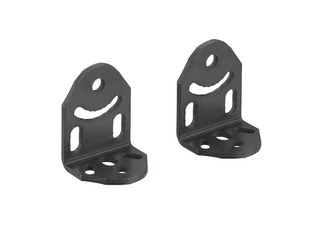

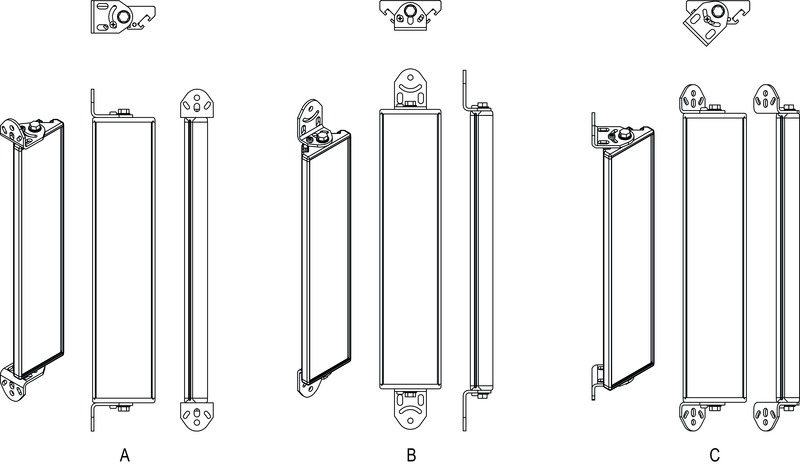

BT-2UM60
Mounting bracket
Part no.: 430105
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
  • Suitable for product group: Safety light curtains
Part no.: 430105
3D-CAD model - zip
