VBT-25-1575-S8

Light curtain transmitter

Part no.: 50107934

Icon
Results list: 1 products found

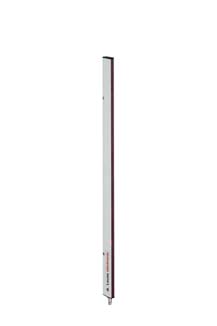

CSL505-T25-1575-VB-M8
Light curtain transmitter
Part no.: 50131662
  • Series: 505
  • Operating principle: Throughbeam principle
  • Special version: Diagonal-beam scanning, Crossed-beam scanning, Par...
  • Operating range: 0.3 ... 5 m
Part no.: 50131662
Series Vario
Operating principle Throughbeam principle
Device type Transmitter
Operating range Guaranteed operating range
Operating range 0.7 ... 5 m
Measurement field length 1,575 mm
Number of beams 64 Piece(s)
Beam spacing 25 mm
Light source LED, Infrared
Protective circuit Polarity reversal protection, Short circuit protected
Supply voltage UB 24 V, DC, -15 ... 20 %
Residual ripple 0 ... 15 %, From UB
Type of connection Connector
Thread size M8
Material Metal
No. of pins 4 -pin
Design Cubic
Dimension (W x H x L) 10 mm x 1,760 mm x 27 mm
Housing material Metal
Metal housing Aluminum
Lens cover material Plastic
Housing color Gray
Type of fastening Through-hole mounting
Type of display LED
Type of configuration Software
Ambient temperature, operation -10 ... 45 °C
Degree of protection IP 54
Protection class III
Standards applied EN 60947-5-2 (German version)
Customs tariff number 90314990
ECLASS 8.0 27270910
ECLASS 9.0 27270910
ETIM 5.0 EC002549
ETIM 6.0 EC002549

Filter

Results list: 23 products found
KD U-M8-4A-P1-020
Connection cable
Part no.: 50130854
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130854
KD U-M8-4A-P1-030
Connection cable
Part no.: 50130855
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130855
KD U-M8-4A-P1-050
Connection cable
Part no.: 50130856
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130856
KD U-M8-4A-P1-100
Connection cable
Part no.: 50130857
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130857
KD U-M8-4A-P1-150
Connection cable
Part no.: 50130858
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 15,000 mm
Part no.: 50130858
KD U-M8-4A-P1-200
Connection cable
Part no.: 50130859
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50130859
KD U-M8-4A-V1-020
Connection cable
Part no.: 50130848
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130848
KD U-M8-4A-V1-050
Connection cable
Part no.: 50130850
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130850
KD U-M8-4A-V1-100
Connection cable
Part no.: 50130851
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130851
KD U-M8-4A-V1-150
Connection cable
Part no.: 50130852
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 15,000 mm
Part no.: 50130852
KD U-M8-4A-V1-200
Connection cable
Part no.: 50130853
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50130853
KD U-M8-4W-P1-020
Connection cable
Part no.: 50130873
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130873
KD U-M8-4W-P1-020-DP
Connection cable
Part no.: 50130880
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130880
KD U-M8-4W-P1-030
Connection cable
Part no.: 50130874
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130874
KD U-M8-4W-P1-050
Connection cable
Part no.: 50130875
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130875
KD U-M8-4W-P1-050-DP
Connection cable
Part no.: 50130881
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130881
KD U-M8-4W-P1-100
Connection cable
Part no.: 50130876
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130876
KD U-M8-4W-V1-020
Connection cable
Part no.: 50130869
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130869
KD U-M8-4W-V1-020-DP
Connection cable
Part no.: 50130877
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130877
KD U-M8-4W-V1-030
Connection cable
Part no.: 50130870
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130870
KD U-M8-4W-V1-050
Connection cable
Part no.: 50130871
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130871
KD U-M8-4W-V1-050-DP
Connection cable
Part no.: 50130878
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130878
KD U-M8-4W-V1-100
Connection cable
Part no.: 50130872
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130872
Results list: 1 products found
K-DS M8A-M12A-4P-0,3m-PVC
Interconnection cable
Part no.: 50107276
  • Connection: Connector, M8  -  Connector, M12
  • Connection 01, version: Female, Axial
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50107276
