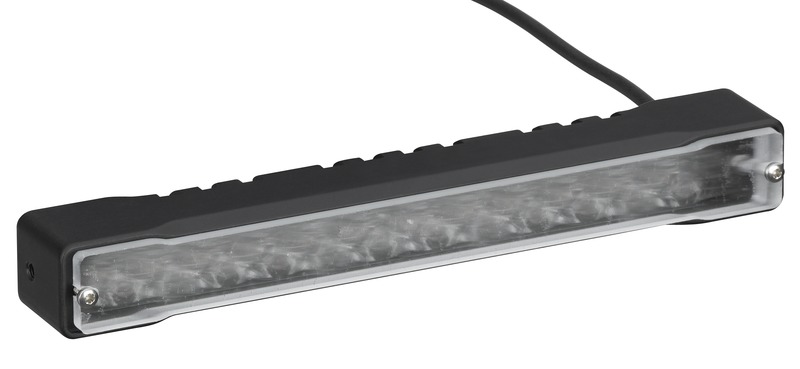

IL BA 012/130 RD 301 L D

Illumination

Part no.: 50148123

Available immediately

Icon Icon
Type LED bar lighting with switchable constant light
Suitable for DCR 1048i
IVS 1048i
Special version Protective cover, lenticular
Functions Continuous operation
Light source LED, Red
Wavelength 446 nm
Transmitted-signal shape Continuous
LED group 1
Opening angle, max. 18 °
Supply voltage UB 24 V, DC
Power consumption, max. 6 W, at 24 V DC
Function Voltage supply
Type of connection Cable with connector
Thread size M12
Type Male
Material Metal
No. of pins 3 -pin
Encoding A-coded
Design Cubic
Dimension (W x H x L) 23.1 mm x 18 mm x 144 mm
Housing material Metal
Metal housing Aluminium, anodized
Plastic housing PC
Lens cover material Plastic/PC
Net weight 105 g
Housing color Black
Type of fastening Mounting thread
Via optional mounting device
Ambient temperature, operation 0 ... 40 °C
Ambient temperature, storage -20 ... 40 °C
Relative humidity (non-condensing) 90 %
Degree of protection IP 40
Protection class III
Certifications c UL US
Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb
Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc
Customs tariff number 85395100
ECLASS 5.1.4 27310204
ECLASS 8.0 27310204
ECLASS 9.0 27310204
ECLASS 10.0 27310204
ECLASS 11.0 27310204
ECLASS 12.0 27310204
ECLASS 13.0 27310204
ECLASS 14.0 27310204
ETIM 5.0 EC002498
ETIM 6.0 EC003015
ETIM 7.0 EC003015
ETIM 8.0 EC003015
ETIM 9.0 EC003015
