EI 1058-S10x20C-2048H-M23A

Rotary encoder

Part no.: 50139591

Icon Icon
Series EI 1xxx
Type Incremental rotary encoder
Max. operating speed 6,000 r/min
Resolution 2,048 p/r
Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 5 ... 28 V, DC
Open-circuit current 0 ... 150 mA
Switching frequency 300,000 Hz
Type HTL
Number of connections 1 Piece(s)
Function Signal OUT
Voltage supply
Type of connection Connector
Thread size M23
Type Male
Material Metal
No. of pins 12 -pin
Plug outlet Axial
Housing material Metal
Metal housing Aluminum
Flange type Clamping flange
Design Shaft

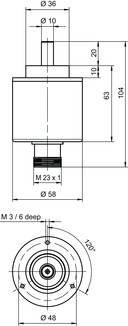

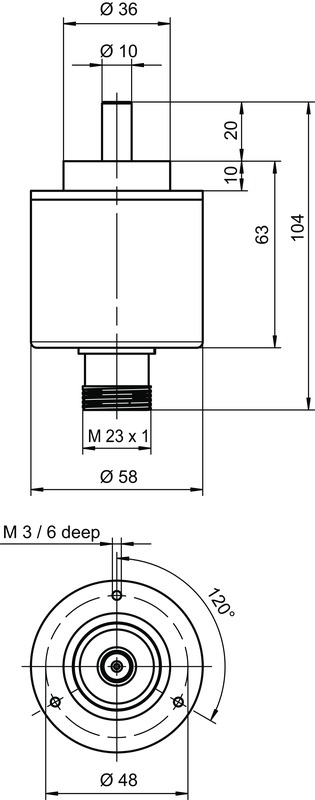

Dimension (Ø x L) 10 mm
Dimension (Ø x L) 20 mm
Start-up torque 0.5 N·m
Shaft load - axial 60 N
Shaft load - radial 120 N
Ambient temperature, operation -40 ... 70 °C
Ambient temperature, storage -40 ... 70 °C
Degree of protection IP 65
Standards applied IEC 61000-6-2:2016, IEC 61000-6-4:2016 + A1
Test procedure for vibration in accordance with standard 10g IEC 68-2-6 (10…2000 Hz)
Customs tariff number 90314990
ECLASS 5.1.4 27270501
ECLASS 8.0 27270501
ECLASS 9.0 27270501
ECLASS 10.0 27270501
ECLASS 11.0 27270501
ECLASS 12.0 27270501
ETIM 5.0 EC001486
ETIM 6.0 EC001486
ETIM 7.0 EC001486
