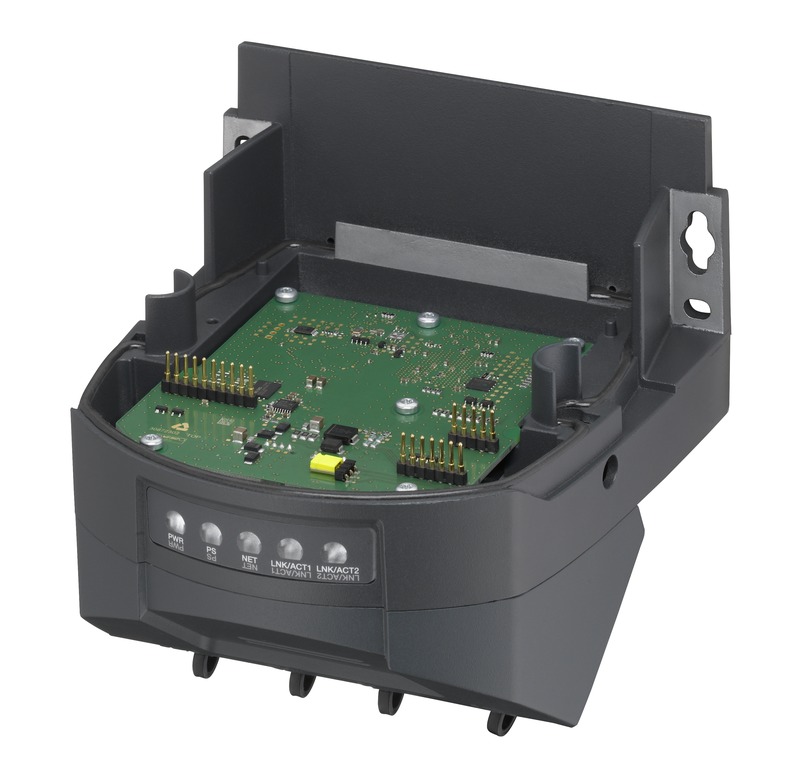

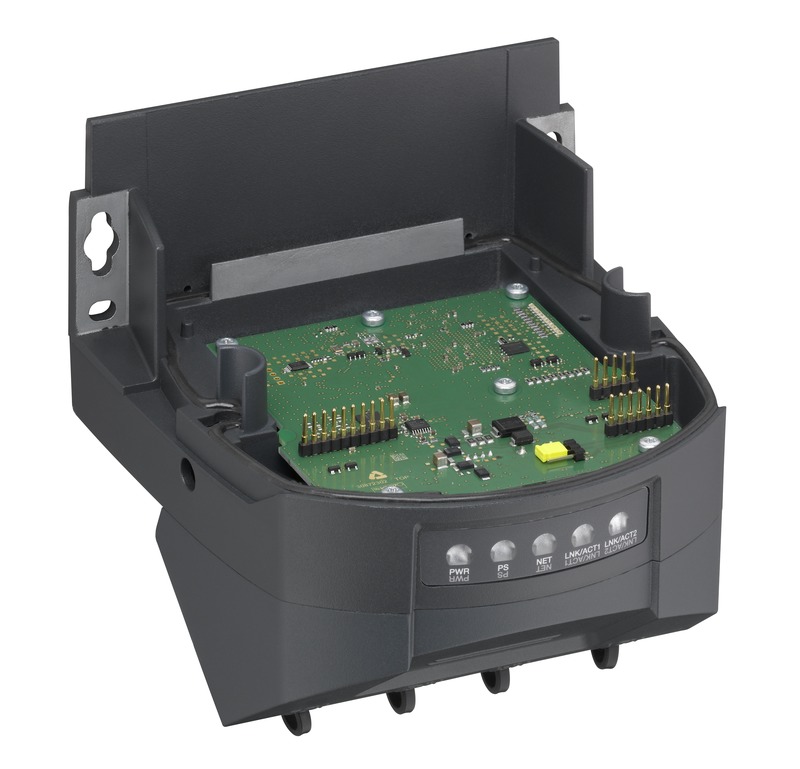

CU400P-AIDA
Connection unit
Suitable for | RSL 420P safety laser scanner RSL 450P safety laser scanner RSL 455P safety laser scanner |
Number of connections | 4 Piece(s) |
Function | Voltage supply |
Type of connection | PROFINET push-pull 24V |
Function | Ethernet, input |
Type of connection | RJ45 |
Function | Ethernet, output |
Type of connection | RJ45 |
Function | Voltage supply |
Type of connection | PROFINET push-pull 24V |
Dimension (W x H x L) | 140.2 mm x 93.8 mm x 142 mm |
Housing material | Metal |
Metal housing | Diecast zinc |
Net weight | 3,230 g |
Housing color | Black |
Type of fastening | Bayonet system |
Customs tariff number | 85389099 |
ECLASS 5.1.4 | 27279290 |
ECLASS 8.0 | 27279290 |
ECLASS 9.0 | 27279090 |
ECLASS 10.0 | 27272791 |
ECLASS 11.0 | 27272791 |
ECLASS 12.0 | 27272791 |
ECLASS 13.0 | 27272791 |
ECLASS 14.0 | 27272791 |
ECLASS 15.0 | 27272791 |
ETIM 5.0 | EC002498 |
ETIM 6.0 | EC003015 |
ETIM 7.0 | EC003015 |
ETIM 8.0 | EC003015 |
ETIM 9.0 | EC003015 |
ETIM 10.0 | EC003015 |
