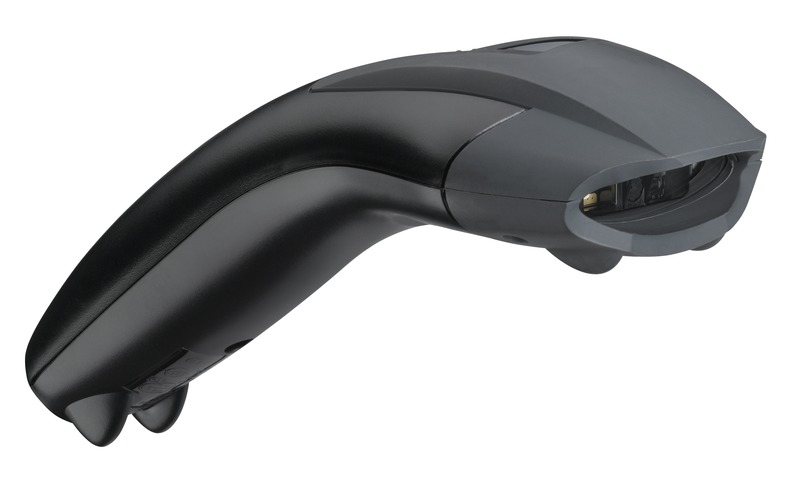

IT 1400g PDF-2-USB-KIT

Mobile bar code reader

Part no.: 50141806

Icon Icon Icon
Series IT14xx
Contains 1x USB interconnection cable 1.5 m
Code types, readable 2/5 Interleaved
Codabar
Codablock
Code 39
Code 93
Code 128
EAN 8/13
EAN 128
EAN Addendum
GS1 Databar
GS1 Databar Expanded
GS1 Databar Limited
GS1 Databar Omnidirectional
GS1 Databar Stacked
GS1 Databar Truncated
Micro PDF
PDF417
UPC
Reading distance 37 ... 370 mm
Light source LED, Red
LED group 1
Camera resolution, horizontal 640 px
Camera resolution, vertical 480 px
Bar code contrast (PCS) 35 %
Modulus size 0.127 ... 0.508 mm
Supply voltage UB 4 ... 5.5 V, DC
Power consumption, max. 2 W
Type USB, RS 232
Function Process
Function Process
Type of connection RJ41
Dimension (W x H x L) 66 mm x 43 mm x 180 mm
Housing material Plastic
Plastic housing UL 94-V0
Net weight 119 g
Ambient temperature, operation 0 ... 40 °C
Ambient temperature, storage -40 ... 60 °C
Relative humidity (non-condensing) 0 ... 95 %
Drop height 1.5 m
Measurements relative to Concrete floor
Degree of protection IP 42
Certifications c UL US
Customs tariff number 84719000
ECLASS 5.1.4 27280101
ECLASS 8.0 27280101
ECLASS 9.0 27280101
ECLASS 10.0 27280101
ECLASS 11.0 27280101
ECLASS 12.0 27280101
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002550
ETIM 8.0 EC002550
