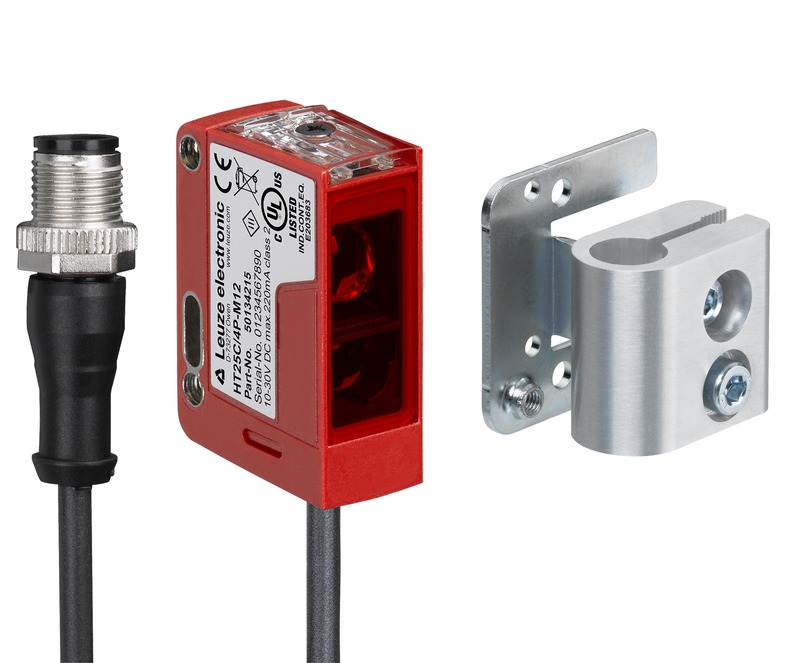

Set HT25CXPX200M12 BTU305M25

Diffuse sensor with background suppression set

Part no.: 50143203

Icon Icon Icon Icon Icon
Series 25C
Operating principle Diffuse reflection principle with background suppression
Pre-mounted on Mounting system
Special version Article set
Reflective vest suppression in the background
Black-white error < 10% up to 350 mm
Operating range, white 90% 0 ... 0.9 m
Operating range, gray 18% 0.005 ... 0.65 m
Operating range, black 6% 0.001 ... 0.55 m
Operating range limit 0 ... 0.9 m
Adjustment range 50 ... 900 mm
Light source LED, Red
Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 20 mA
Number of digital switching outputs 1 Piece(s)
Switching element Transistor, PNP
Switching principle Dark switching
Switching frequency 1,500 Hz
Response time 0.33 ms
Type of connection Cable with connector
Cable length 200 mm
Thread size M12
Material PUR
No. of pins 4 -pin
Dimension (W x H x L) 15 mm x 42.7 mm x 30 mm
Housing material Plastic
Plastic housing ABS
Lens cover material Plastic
Net weight 33 g
Type of fastening Through-hole mounting with M4 thread
Via optional mounting device
Compatibility of materials ECOLAB
Operational controls Multiturn potentiometer
Ambient temperature, operation -40 ... 60 °C
Degree of protection IP 67
IP 69K
Protection class III
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270904
ECLASS 8.0 27270904
ECLASS 9.0 27270904
ECLASS 10.0 27270904
ECLASS 11.0 27270904
ECLASS 12.0 27270903
ETIM 5.0 EC002719
ETIM 6.0 EC002719
ETIM 7.0 EC002719
ETIM 8.0 EC001821
