PRK18B.TT3/2N-6000

Polarized retro-reflective photoelectric sensor

Part no.: 50121227

Icon Icon Icon Icon Icon Icon
Series 18B
Operating principle Reflection principle
Application Detection of highly transparent bottles
Detection of highly transparent films and glass panes
Special version Autocollimation
Tracking function
Operating range 0 ... 3 m
Operating range limit 0 ... 3.6 m
Light source LED, Red
Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 18 mA
Number of digital switching outputs 2 Piece(s)
Switching element Transistor, NPN
Switching principle Light switching
Switching element Transistor, NPN
Switching principle Dark switching
Switching frequency 1,500 Hz
Response time 0.333 ms
Type of connection Cable
Cable length 6,000 mm
Number of conductors 4 -wire
Dimension (W x H x L) 15 mm x 47 mm x 32.5 mm
Housing material Metal
Metal housing Diecast zinc
Lens cover material Glass
Net weight 240 g
Type of fastening Front mounting with thread
Through-hole mounting
Via optional mounting device
Compatibility of materials ECOLAB
Operational controls Teach button
Ambient temperature, operation -40 ... 60 °C
Degree of protection IP 67
IP 69K
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270902
ECLASS 8.0 27270902
ECLASS 9.0 27270902
ECLASS 10.0 27270902
ECLASS 11.0 27270902
ECLASS 12.0 27270902
ECLASS 13.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717
ETIM 7.0 EC002717
ETIM 8.0 EC002717
Filter
Results list: 21 products found
KD U-M12-4A-P1-020
Connection cable
Part no.: 50130654
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130654
KD U-M12-4A-P1-020-DP
Connection cable
Part no.: 50130672
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130672
KD U-M12-4A-P1-050
Connection cable
Part no.: 50130657
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130657

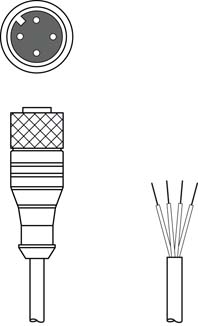

KD U-M12-4A-P1-050-DP
Connection cable
Part no.: 50130675
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130675
KD U-M12-4A-P1-100
Connection cable
Part no.: 50130658
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130658
KD U-M12-4A-P1-100-DP
Connection cable
Part no.: 50130676
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130676
KD U-M12-4A-V1-020
Connection cable
Part no.: 50130648
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130648
KD U-M12-4A-V1-050
Connection cable
Part no.: 50130652
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130652
KD U-M12-4A-V1-100
Connection cable
Part no.: 50130653
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130653
KD U-M12-4A-V1-200
Connection cable
Part no.: 50132431
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50132431
KD U-M12-4A-V1-300
Connection cable
Part no.: 50132430
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 30,000 mm
Part no.: 50132430
KD U-M12-4W-P1-020
Connection cable
Part no.: 50130692
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130692

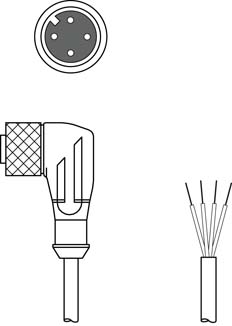

KD U-M12-4W-P1-020-DP
Connection cable
Part no.: 50130718
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130718
KD U-M12-4W-P1-050
Connection cable
Part no.: 50130694
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130694
KD U-M12-4W-P1-050-DP
Connection cable
Part no.: 50130720
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130720
KD U-M12-4W-P1-100
Connection cable
Part no.: 50130695
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130695
KD U-M12-4W-P1-100-DP
Connection cable
Part no.: 50130721
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130721
KD U-M12-4W-V1-020
Connection cable
Part no.: 50130688
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130688
KD U-M12-4W-V1-050
Connection cable
Part no.: 50130690
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130690
KD U-M12-4W-V1-100
Connection cable
Part no.: 50130691
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130691
KD U-M12-4W-V1-200
Connection cable
Part no.: 50132641
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50132641
Filter
Results list: 5 products found

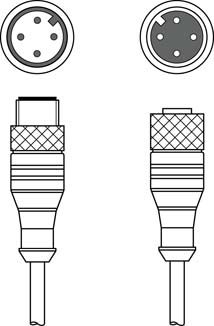

K-DS M12A-M12A-4P-0,2m-X1-PVC
Interconnection cable
Part no.: 50125173
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50125173
KDS U-M12-4A-M12-4A-V1-020
Interconnection cable
Part no.: 50132438
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50132438
KDS U-M12-4A-M12-4A-V1-050
Interconnection cable
Part no.: 50132439
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50132439
KDS U-M12-4A-M12-4A-V1-100
Interconnection cable
Part no.: 50132440
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50132440
KDS U-M12-4A-M12-4A-V1-200
Interconnection cable
Part no.: 50132441
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50132441
Results list: 1 products found
BT 95
Mounting device
Part no.: 50020833
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50020833
Filter
Results list: 6 products found
BTP 200M-D10
Mounting system
Part no.: 50117830
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 10 mm rod
  • Mounting device material: Metal
Part no.: 50117830
BTP 200M-D12
Mounting system
Part no.: 50117829
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 12 mm rod
  • Mounting device material: Metal
Part no.: 50117829
BTP 200M-D14
Mounting system
Part no.: 50117828
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 14 mm rod
  • Mounting device material: Metal
Part no.: 50117828
BTU 300M-D10
Mounting system
Part no.: 50117253
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 10 mm rod
  • Mounting device material: Metal
Part no.: 50117253
BTU 300M-D12
Mounting system
Part no.: 50117252
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 12 mm rod
  • Mounting device material: Metal
Part no.: 50117252

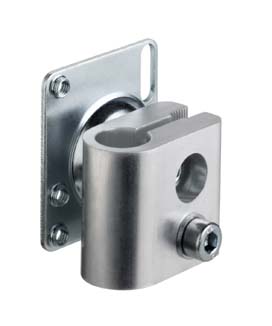

BTU 300M-D14
