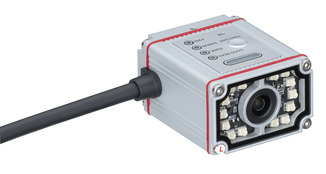

Stationary 1D / 2D code readers

Camera-based bar code readers for stationary use: These code readers reliably capture 1D- and 2D-codes; depending on the type, printed or directly marked, omnidirectional, static or in fast motion as well as inverse or mirrored codes. Various version are available with respect to size, protection classes IP 67 or 69K, speed or interfaces.

Stationary 1D/2D code readers

Camera-based bar code readers for stationary use: These code readers reliably capture 1D- and 2D-codes; depending on the type, printed or directly marked, omnidirectional, static or in fast motion as well as inverse or mirrored codes. Various version are available with respect to size, protection classes IP 67 or 69K, speed or interfaces.

Advantages for you

  • Easy and fast commissioning
    A wizard integrated in the WebConfig tool guides you quickly and easily through the setup process and simplifies commissioning. For simple applications, the DCR 200i can also be set up for the reading task without a PC using just two buttons on the device

  • Codes can be read on various materials
    Interfering reflections can be reduced thanks to exchangeable polarization filters and diffusor foils

  • Detection, even at high object speeds
    High reading performance and powerful LED illumination enable a good reading result even at high object speeds or partially damaged codes.

  • Attractively priced thanks to modular set-up
    Thanks to the modular design, the DCR 200i is exactly adapted to the requirements of your application with respect to function range and power.



Highlights

Highlight: DCR 200i dual code reader

Seamless traceability of your products from production to the customer is getting increasingly more important. Whether for allergen management with food products, placement inspections in the pharmaceutical industry, shipping label monitoring in the packaging sector or testing of the product quality in the electronics industry – the fast and reliable identification of 1D- and 2D-codes is essential.

The DCR 200i dual code reader combines simple handling with high reading performance – even with demanding reading tasks – and thereby provides support with:

  • Identification - ensuring that the label was printed with product/bar code and/or Data Matrix code
  • Track and trace - traceability of ingredients and packed products during production.

Application

Code reading in the production area

Requirement:
In final assembly, codes are used for the traceability of individual components. These must be read on a conveyor line that – at times – moves at high speeds.

Solution:
Thanks to their high scanning rate, the DCR 200i 1D-/2D-code readers enable the reading of codes on quickly moving objects. In addition, optics models are available for various reading ranges.

Code checking in electronics production
Shipping-label inspection in conveyor and storage systems
Code inspection on pharmaceutical packages
Label inspection in the food industry



DCR 1048i

Der leistungsstarke Code-Lesealgorithmus des DCR 1048i garantiert ausgezeichnet hohe Leseraten. Dieses Modell verfügt optional über einen verbesserten Algorithmus speziell für DPM-Codes.

Ihr Nutzen

  • 1D-/ 2D-Codelesen mit einem bildverarbeitenden Sensor
  • Verbesserter Lesealgorithmus speziell für DPM-Codes
  • Schnelle Inbetriebnahme
  • Unterstützung der gängigen Industrieprotokolle
  • Wechselbare Objektive für Flexibilität in Bezug auf Entfernung, Bildfeld und Aulösung
  • Auch Multicode-Decodierung möglich

Applikation

DCR 1048i: Gleichzeitige Lesung mehrerer 1D- und 2D-Codes

Anforderung:
Auf einer Sekundärverpackung sind sowohl ein 1D- als auch ein 2D-Code aufgebracht. Zur Qualitätssicherung sollen die Codes gescannt werden, bevor sie in einen Umkarton als 5er-Gebinde gepackt werden, Die Identifikation der Codes soll dabei gleichzeitig und unabhängig von der Codeart mit einem einzigen Scan erfolgen.

Lösung:
Der neue DCR 1048i kann problemlos entweder einzelne 1D- und 2D-Codes oder auch gleichzeitig eine beliebige Anzahl von 1D- und 2D-Codes durch eine Multicode-Decodierung lesen.

DCR 1048i: Lesung von direkt gedruckten Codes auf Verpackungsmaterial

Anforderung:
Auf einer Sekundärverpackung ist ein 2D-Code direkt aufgedruckt. Die Decodierung dieser sogenannten DPM-Codes ist für die Rückverfolgbarkeit der Produkte unerlässlich.

Lösung:
Der Simple Vision Sensor DCR 1048i DPM hat einen optimierten Lesealgorithmus der speziell für die Decodierung von direkt gedruckten Codes auf Verpackungen ausgelegt ist.

DCR 1048i: Codelesung zur Erkennung der Ausrichtung von Beuteln auf Förderstrecken

Anforderung:
Bei Beutelprodukten ist ein Code auf der Verpackungsrückseite aufgedruckt. Dieser soll dazu dienen, die korrekte Ausrichtung aller Beutelprodukte zu prüfen, bevor diese automatisiert in einen Umkarton gepackt werden.

Lösung:
Der DCR 1048i kann die Codes identifizieren, um zu prüfen, ob das Beutelprodukt richtig ausgerichtet ist oder nicht. Alternativ kann auch eine Mustererkennung verwendet werden, um die korrekte Ausrichtung der Beutelprodukte zu erkennen.




DCR 50/55

Compact 1D- and 2D-code readers as module or in aluminum housing. CMOS imager and integrated decoder for all commonly used 1D and 2D codes. RS 232 or USB interface, one trigger input, one switching output, degree of protection IP 54.

Advantages for you

  • Very small construction
  • Ready to read all common codes
  • RS 232 or USB interfaces
  • Simple configuration with the Sensor Studio PC software

Application

Manual code reading and reading in presentation mode

Requirement: 1D-/2D-codes must be read on samples by an automatic analyzer. Devices with modular construction are necessary for use in small automatic analyzers.

Solution: With their very small size and open design, the DCR 50 1D-/2D-code readers can be optimally integrated in constrained spaces.

Code reading on reagents

Requirement: 1D-/2D-codes must be read on samples or reagents by an automatic analyzer. Devices with modular construction are necessary for use in small automatic analyzers.

Solution: The DCR 55 1D-/2D-code readers can read codes in a large reading field on slowly moving objects. For very restricted installation situations, the DCR 50 is available as a model without housing.

Code reading in tube sorters

Requirement: Prior to further processing, 1D-/2D-codes must be read for sorting.

Solution: The DCR 55 1D-/2D-code readers can read codes in a large reading field. For very restricted installation situations, the DCR 50 is available without housing.




LSIS 220

The LSIS 220, with its optimized optics and resolution, offers large function reserves for reliable code reading, even while in motion. It quickly and reliably detects bar codes, stacked codes and 2D-codes.

Advantages for you

  • Improved optics for larger read field and in-focus detection all the way to the edge areas, optimized resolution of 844x640 pixels for fast code reading
  • Detection of 2D-codes, stacked codes and bar codes
  • RS 232 or USB interface
  • Switching input (trigger)
  • Trigger button for manual activation and configuration
  • Construction without mechanically moved parts, robust metal housing with glass window and degree of protection IP 65 make the devices very well suited for industrial use
  • Extremely small construction size, also for installation under difficult conditions



Application

Manual code reading and reading in presentation mode

Requirement: In assembly processes in which large, various components are moved by hand, both automatic as well as manual code reading must be possible.

Solution: The LSIS 220 1D-/2D-code readers are equipped with various trigger options for automatic and manual operation.




Products in the overview

  DCR 50/55 miniature scanner DCR 200i compact scanner LSIS 220 compact scanner
Description Compact 1D- and 2D-code readers Fast 1D- and 2D-code reading with modular design Compact 1D- and 2D-code reading
Areas of application Code reading on objects at a standstill or with slow movement speed in constrained spaces Code reading on objects with high movement speed Manual code reading and reading in presentation mode
Integrated interfaces RS232; USB RS232/422; TCP/IP; PROFINET; EtherNet/IP RS232; USB
Reading range 30 – 425 mm 40 – 800 mm  50 – 330 mm
Image resolution 1,280 x 960 pixels 1,280 x 960 pixels 844 x 640 pixels
Modulus size 0.127 – 0.528 mm 0.1 – 1 mm 0.127 – 1 mm
Ambient temperature (operation) 0 – 50 °C

0 – 50 °C (without heating), –30 – 50 °C (with heating)

0 – 40 °C
Dimension (W x H x L)

DCR 50:  31.6 × 12.7 × 27.5 mm

DCR 55:  31.5 × 20 × 40.3 mm

43×61×44 mm 40×32×47 mm
